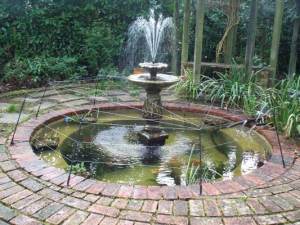

A Heron Guard Fitted To A Pond With A Hard Surround
Click on the image to see it enlarged


Read these instructions through carefully before installation.

Open the packet containing the fitting kit for the Heron Guard. Each packet will contain 10 sockets, 30 screws and 30 plastic plugs.

Place the sockets at intervals around the edge of the pond so that each socket approximately 4-6 inches (10cm-15cm) from the edge of the pond.

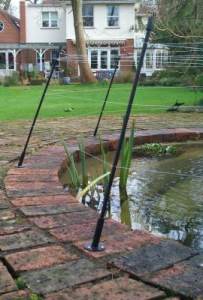

A Heron Guard Fitted To A Pond With A Hard Surround Each socket has a circular base. The circular base contains 3 small holes. The holes are for the screws which will secure the socket firmly to the edge of the pond. Carefully mark the location of the 3 holes with a crayon. Move the sockets out of the way while you carefully drill 3 holes in the positions you have marked out. Use a 6mm masonry drill and make sure that the holes are exactly in the positions marked. Place one of the red plastic plugs provided in each hole. Knock each plug firmly into its hole with a hammer. Replace the socket into position over the plastic plugs. Place one of the screws provided in each hole and use a screwdriver to tighten each screw firmly into the plastic plugs. The socket should now be firmly screwed to the edge of the pond. Fix each socket into place around the edge of the pond in the same way.
Click on the image to see it enlarged

Open the packet of Heron Guard rods. Each packet will contain 10 rods. Push each rod firmly into the sockets you have installed around the edge of the pond. The angle of each socket means that each rod will be leaning slightly forwards at an angle of 15. This will make access to the pond more difficult for the heron and it will help to reduce the chances of anyone accidentally poking their eye on the end of a rod. The rods are also rubber tipped for eye safety.

Tadpole Tip: Before fixing the sockets around the pond, have a practise first. Make your mistakes somewhere unimportant - for example: on a loose house brick or a hidden area of patio.

For Ponds With A Hard Surround - Product Diagram

Choose the location for each rod carefully. Use as few rods as you can. Locate the rods at shorter intervals for tighter curves and longer intervals for gentle curves and ponds with straight edges. A few well placed rods will look much better than lots of unnecessary rods placed at short intervals around the pond.

The rods should be located around the perimeter of the pond so that when the fishing line is stretched around the rods, all of the pond is contained within the circle of fishing line.

When all the rods are in place, stretch fishing line between each rod, tying the fishing line to each rod as you go. Use the grooves provided to locate the fishing line. When you have finished, there will be 3 single strands of fishing line encircling the pond, evenly spaced at different heights.

Tying the fishing line to each rod will mean that if the line is accidentally cut or damaged, only a small section of line will be affected. The line cannot then unwind from the other rods around the pond.

Use the rods to stretch a few strands of fishing line diagonally across the pond. Use only the top grooves for this.

Do you have a statue in the pond or any other object which the heron could land on and fish from? If so, stretch fishing line between the rods so that they cross over the top of the statue and make it difficult for the heron to land.

Tadpole Installation Service

We offer a full Heron Guard installation service for local customers living in the Surrey area and Surrey borders. By asking Tadpole to install your Heron Guard for you, you will benefit from our experience and knowledge of the product. So you can be confident that your Heron Guard is fitted to provide the optimum protection for your pond.

(See our 'Other Services' web page for more details.)
